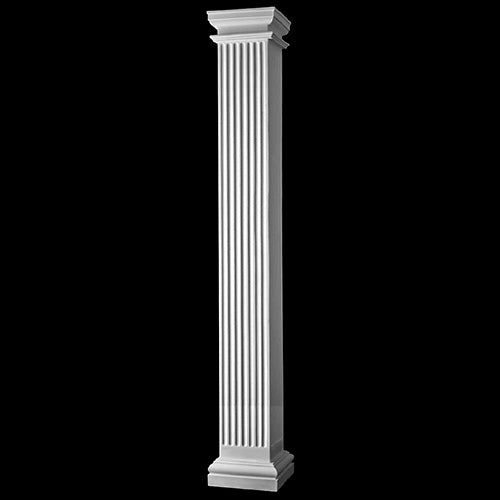

'-Design #701S-7 / Tuscan Order / (Chop & Spray Fiberglass) Column / Fluted, Square, Non-Tapered / Fiberglass Tuscan Capital & Base Molding / Plinth

64963

Material and Manufacturing Process

Composed of high-density fiberglass and polyester resin material. Each column shaft, capital & base molding / plinth is sanded and primed. Custom molds can be created for unique specifications.

Column Shaft

Fiberglass column shaft mixed with polyester resin. Column shaft is fluted (vertical grooves), square, and non-tapered. Paint grade column shaft (includes gel coat). Shaft can be cut down to your desired overall height by trimming the bottom of the column shaft only with a circular saw equipped with a masonry blade. Classic astragal (bead) molded onto shaft.

Capital, Base Molding & Plinth

Tuscan capital, base molding & plinth included - made from fiberglass material. Please also note that column components are designed to wrap around the shaft as decorative sleeves - they do not add height. Please see below for Decorative Capital options and alternative base molding / plinth designs.

Column Plan Shapes

Shape	Diagram	Description
Plan Shape E		Full Square
Plan Shape F		Half Square
Plan Shape G		Corner Square
Plan Shape H		3/4 Corner Square
Plan Shape I		Slide-On Square
Plan Shape J		Inside Corner Square
Plan Shape M		2/3 Chord Square
Plan Shape T		Split For Reassembly
Plan Shape V		3/4 Square

Click here to view round column shapes.

Decorative Capitals
Scamozzi	Roman Ionic
Greek Corinthian	Roman Corinthian
Base Molding & Plinths
Tuscan	Ionic (Attic)

Request a Quote

Please contact a Chadsworth Sales Consultant for additional information. 1-800-486-2118 or sales@columns.com
